High speed Facial Mask folding & bagging machine
‧Production Capacity 3500 PCS/H

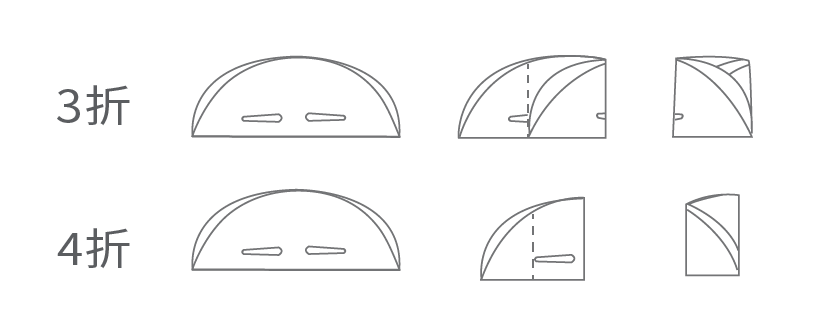

‧Process:Facial Mask with 3-Folded / 4-Folded → Automatic Bagging → Finished Product Output
‧Process:Facial Mask with 3-Folded / 4-Folded → Automatic Bagging → Finished Product Output
Model :
GS-818
| GS-818 | |||||
| Machine Dimensions | L1500 x W1022 x H1500 mm | ||||
| Power Supply | 220V/60Hz, Power 1KW | ||||
| Pneumatic Pressure | 0.6 Mpa | ||||
| Machine Net Weight | 300 KG | ||||
| Layers of Mask Cloth | 1-3 Layer(s) | ||||
| Number of Folding | 3-Folded / 4-Folded | ||||
| Aluminum Bag Specifications | Width:100-160mm/Length:150-220mm | ||||
| Machine Functions | Two Folding Types, Thickness Detection, Automatic Rejection | ||||
| Intelligent Numerical Control | PLC HMI Interface Control System |
| Outlet of Product Output | The finished facial mask bag with folded mask is output from the machine through this outlet |
| High Speed and Stability | |
| Carrying with Conveyor | The mask cloth can be easily placed on the conveyor belt manually |
| Detection of Empty Bag | With high precision mechanism for contact detecting thickness, empty bags or multiple masks shall be rejected automatically |
| Remark | Actual production efficiency depends on the speed of mask placing manually. |
