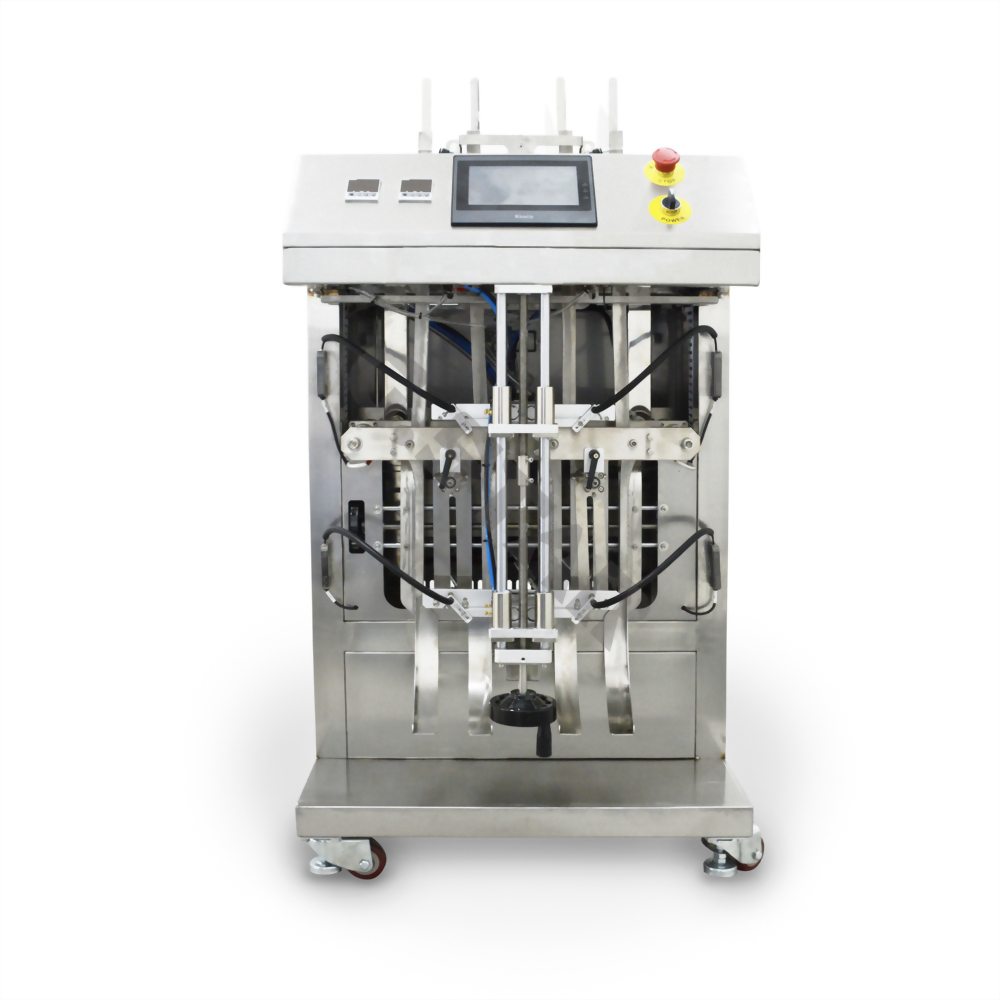

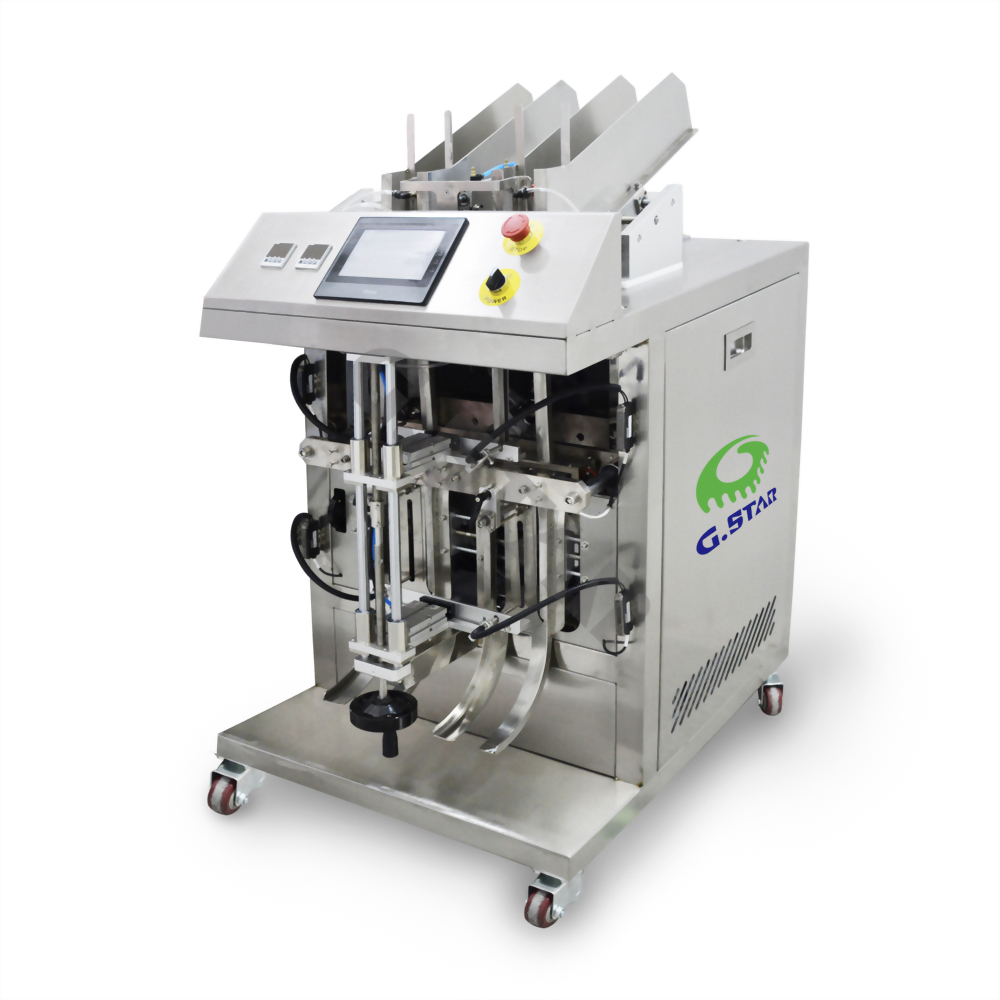

Double Head Facial Mask Filling Machine
‧Easy to operate with PLC HMI Interface Control System
‧High accuracy by using precision magnetic pump filling machines
‧Synchronous opera
‧Can be used with Printing Machine / Optional Conveyor Available
‧High accuracy by using precision magnetic pump filling machines
‧Synchronous opera
‧Can be used with Printing Machine / Optional Conveyor Available
Model :
GS-118
| GS-118 | |
| Machine Dimensions | L660 x W880 x H1250(mm) |
| Power Supply | 220V 60Hz ,Power 1.5KW |
| Pneumatic Pressure | 0.6Mpa |
| Machine Net Weight | 200KG |
| Number of Filling Head | 2 x Filling Heads |
| Filling Error | ±1% |
| Production Capacity | 1800~2200 Bag/HR |
| Layers of Mask Cloth | 1-3 Layer(s) |
| Filling Type | Magnetic Pump |
| Filling Range | 5-100 ml |
| Aluminum Bag Specifications | Width:100-160mm Length:150-220mm |
| Modular Design | Easy to maintain and easy to adjust |
| Automation | A series of actions such as bag taking, mask liquid filling, exhausting, sealing, date printing, finished product output, flattening,etc. |
| Electronic & Pneumatic Parts | Guaranteed durability with PLC HMI Interface Control System |
| PID Intelligent Temperature Controller | Great heat balance & clear heat-sealing pattern by embedded heat-sealing mechanism |
| Vacuum Pump | Stable operation by vacuum pressure |
| Adaption of different aluminum bags | No need to replace the feed tank, and easy for size adjustment for aluminum bags |
