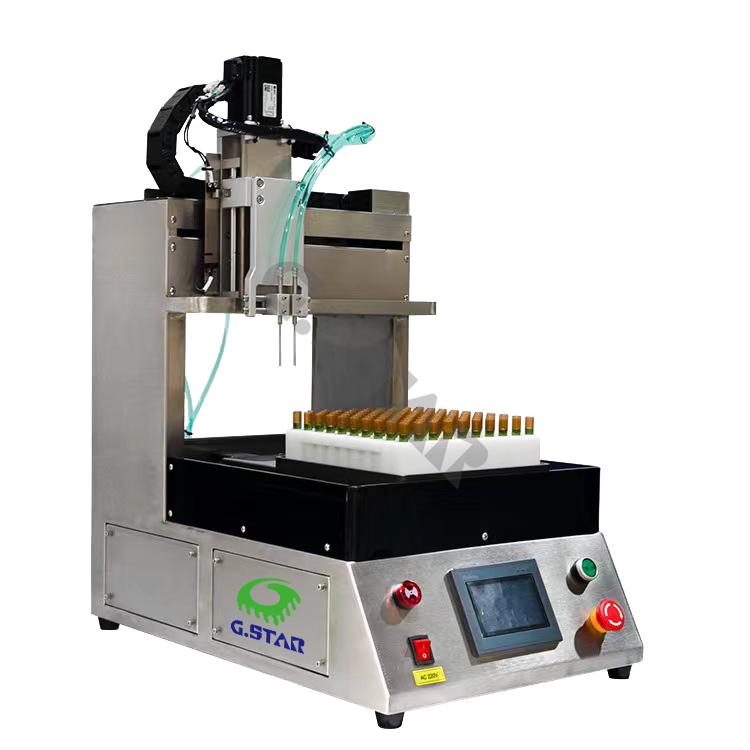

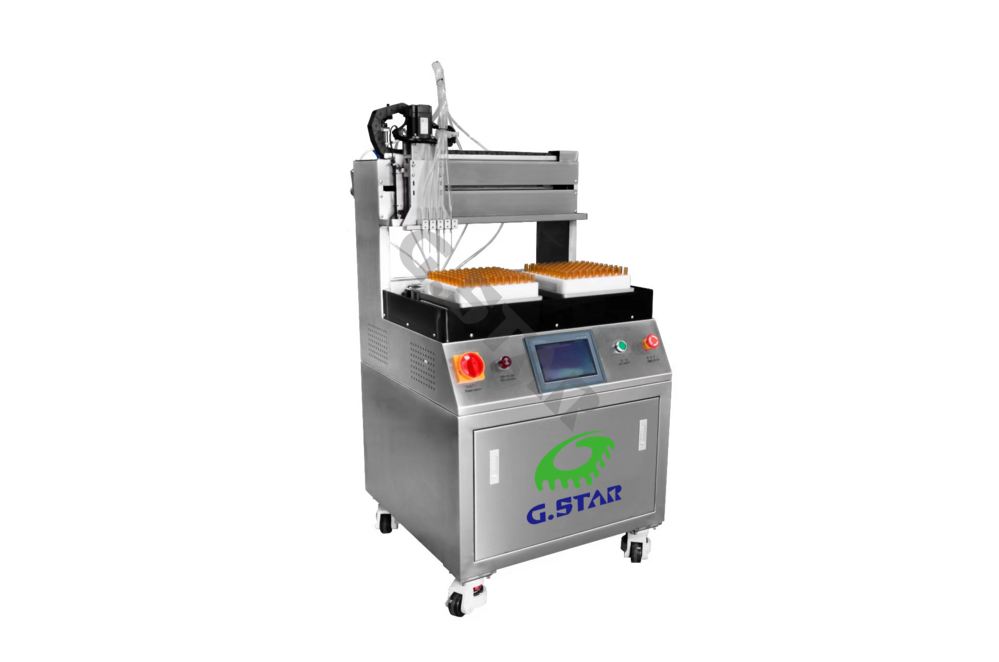

Double-headed Micro Filling Machine
‧Applicable for precision quantitative filling used in food, pharmaceutical, chemical, cosmetic, chemical and other industries.
‧Applicable for precision quantitative filling of acidic and alkaline liquids used in biological reagents, oral liquids, injections, cosmetics,flavors, etc.
‧Automatic Displacing → Filling → Automatic Homing
‧Applicable for precision quantitative filling of acidic and alkaline liquids used in biological reagents, oral liquids, injections, cosmetics,flavors, etc.
‧Automatic Displacing → Filling → Automatic Homing
Model :
GS-15-2XY
| GS-15-2XY | |
| Machine Dimensions | L810 x W400 x H800 mm |
| Power Supply | 220V 60Hz, Power 0.65KW |
| Rotary Speed | 0-200 RPM |
| Machine Net Weight | 110 KG |
| Production Capacity | 0-3000 Time/HR |
| Number of Filling Head | 2 x Filling Heads (Optional 2-5) |
| Filling Error | ±0.5％ |
| Filling Range | 0.3-2.9 ml or 1.5-16 ml(Optional) |
| Parameter adjustment through HMI |
| Ceramic filling pump |
| SUS304 stainless steel machine body |
