Semi-automatic continuous tube filling and sealing machines
* The connection between the equipment mold and the transducer features a titanium alloy screw
* The equipment uses C440 stainless steel material for the cutting blade
* The equipment uses C440 stainless steel material for the cutting blade
Model :
GS-105STFS

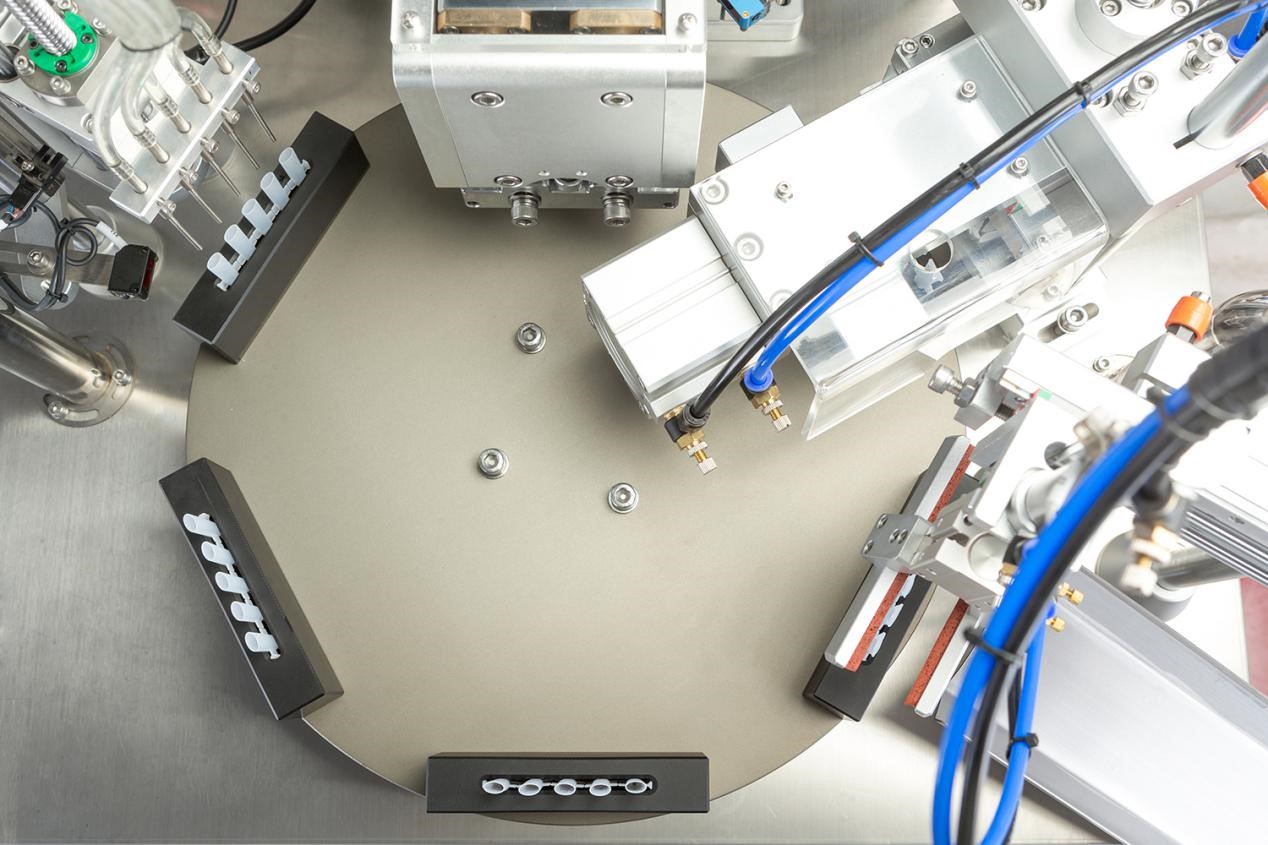

Six-position divider for precise positioning

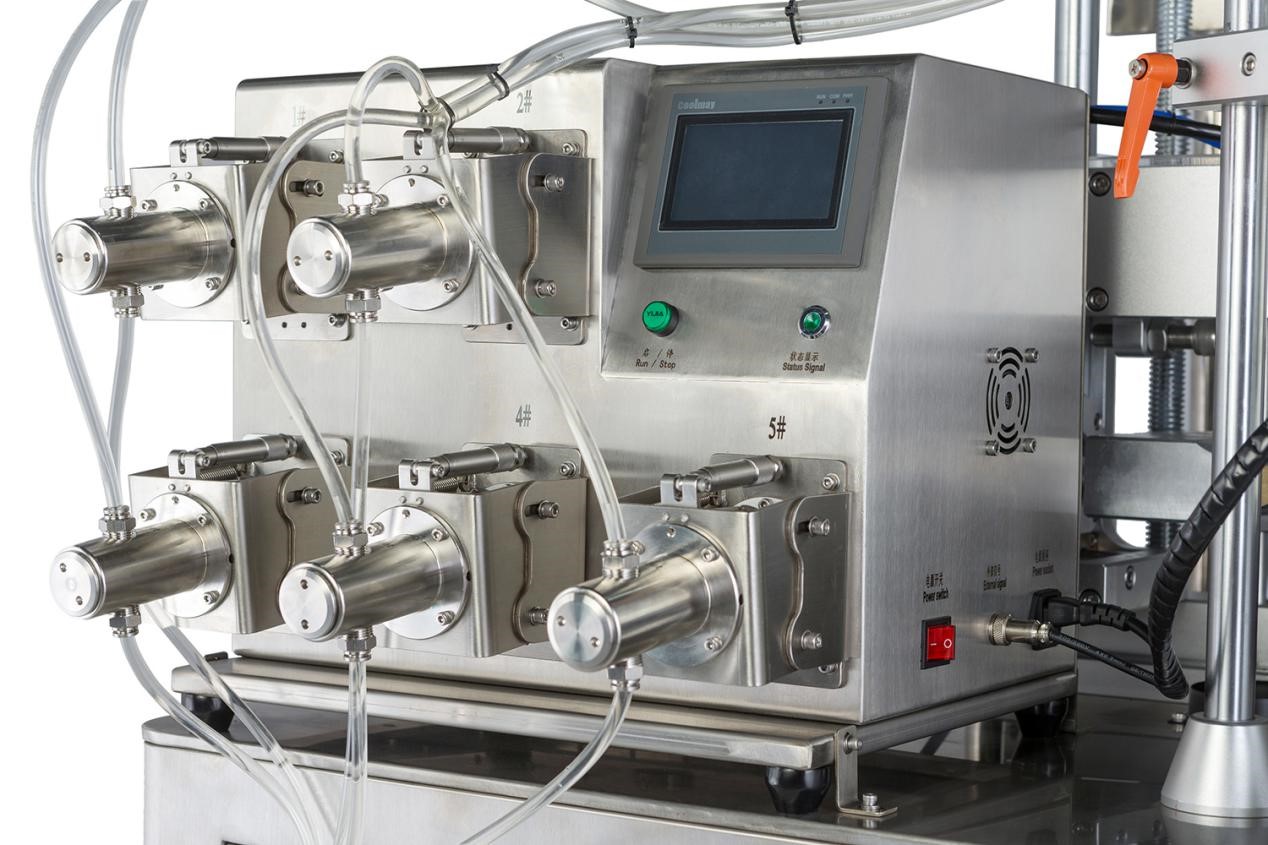

Five-head precision ceramic pump: Filling range: 0.2-3 ml per revolution.

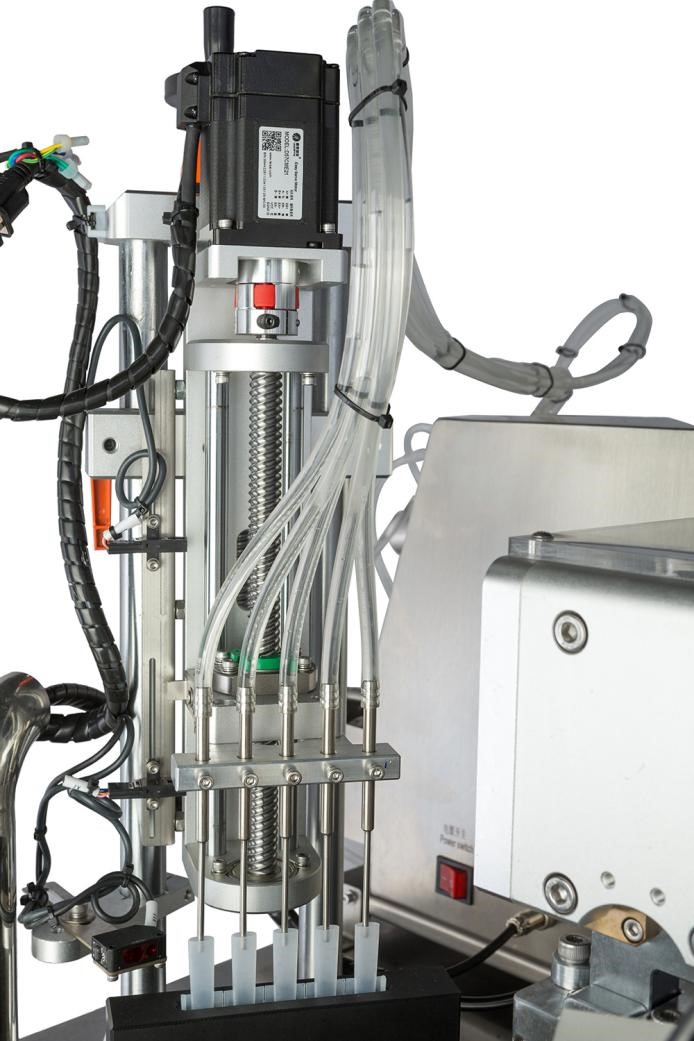

Stepper motor lift control: Height parameters can be set according to product size.

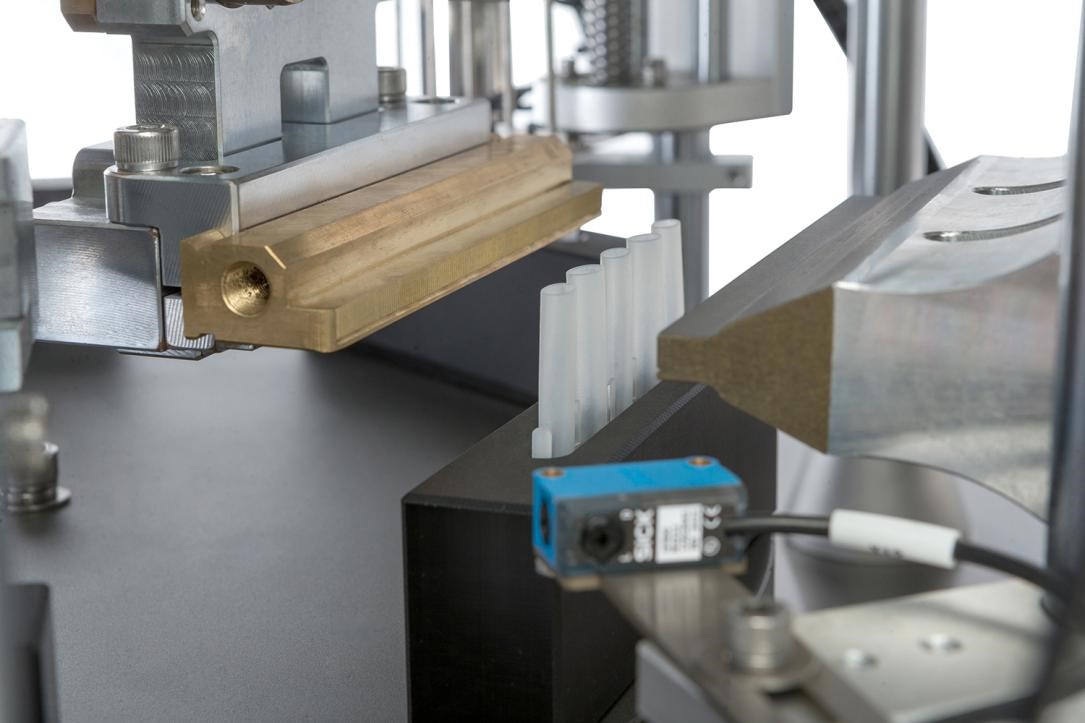

Ultrasonic sealing

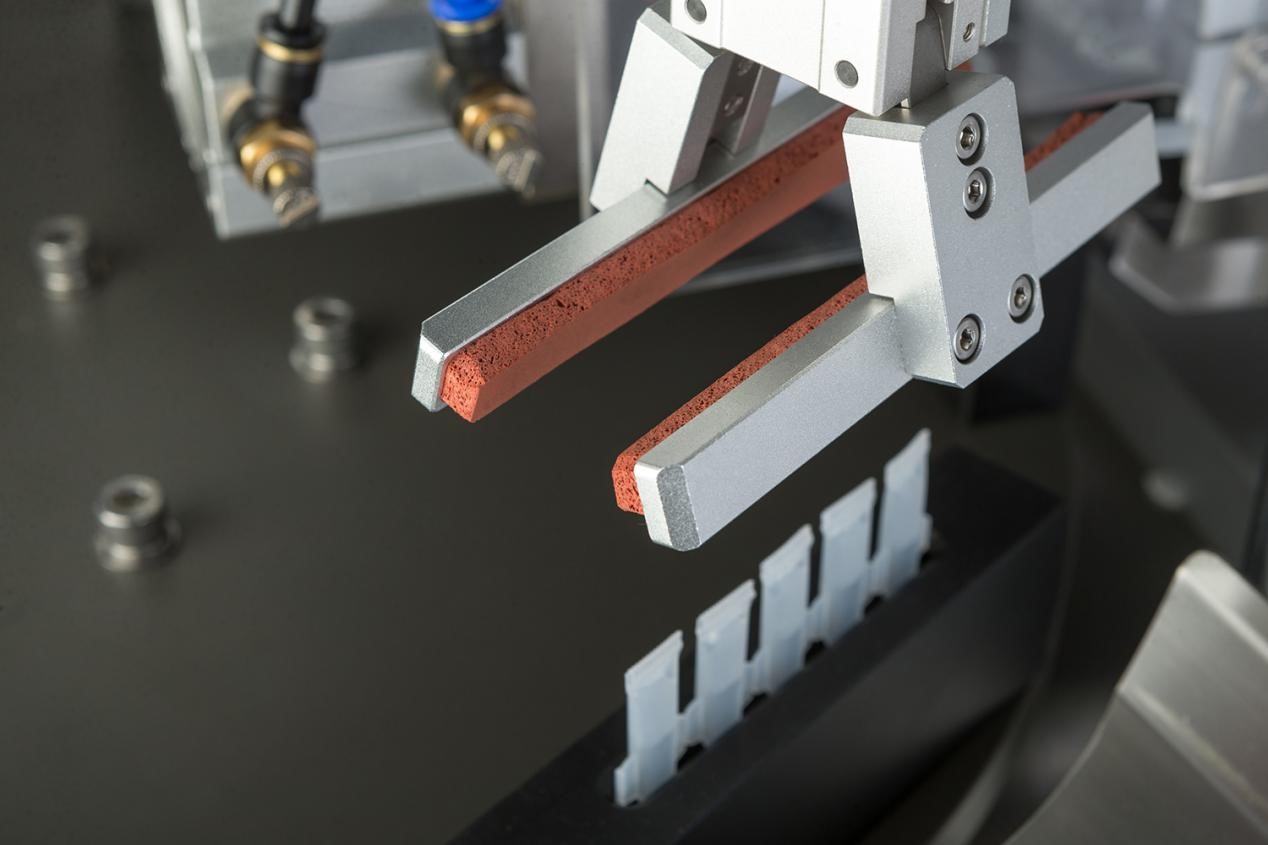

Automatic product extraction by mechanical arm.
Secondary disposable tube
Flat distribution diagram
| GS-105STFS | |||||||||
| Machine Dimensions | L1300 x W1300 x H1950 mm | ||||||||
| Pneumatic Pressure | 0.6Mpa | ||||||||
| Machine Net Weight | 350KG | ||||||||
| Production Capacity | 10-15 Row/min | ||||||||
| Power | 2.6KW | ||||||||
| Filling Range | 0.2-3ml | ||||||||
| Filling Error | ±0.05g | ||||||||
| Tube Diameter | 50-135mm | ||||||||
| Tube Height | 50-150mm | ||||||||
