Dual-head continuous tube filling and sealing machine
Manual tube loading, automatic filling, and tail cutting.
Equipped with safety devices, no filling without tubes, overload protection.
CE certified, compliant with ISO9001 quality system certification.
Equipped with safety devices, no filling without tubes, overload protection.
CE certified, compliant with ISO9001 quality system certification.
Model :
GS-205STFS

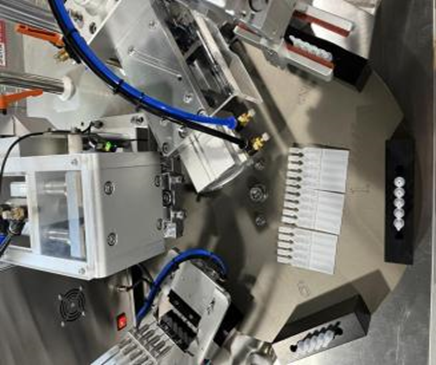

Six-position divider for precise positioning

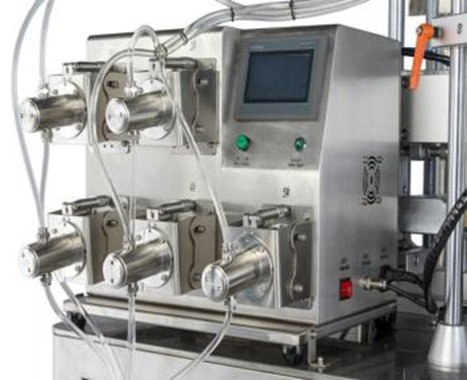

10-head non-valve ceramic pump filling range：0.3-3 ml per revolution。

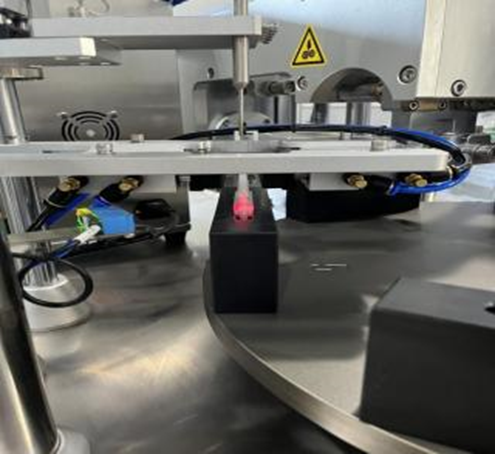

Stepper motor lift control: Height parameters can be set according to product size

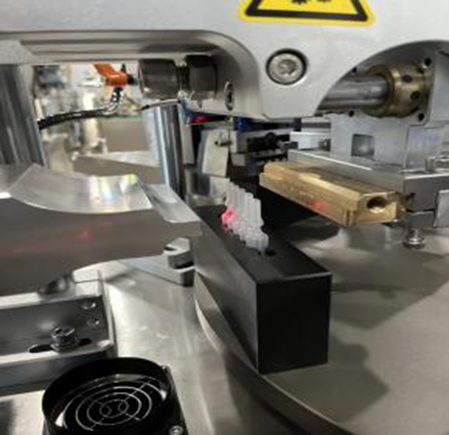

Ultrasonic sealing

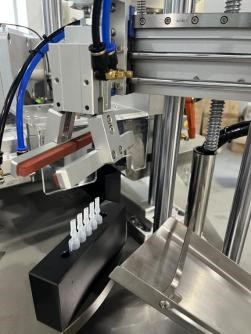

Automatic product extraction by mechanical arm.

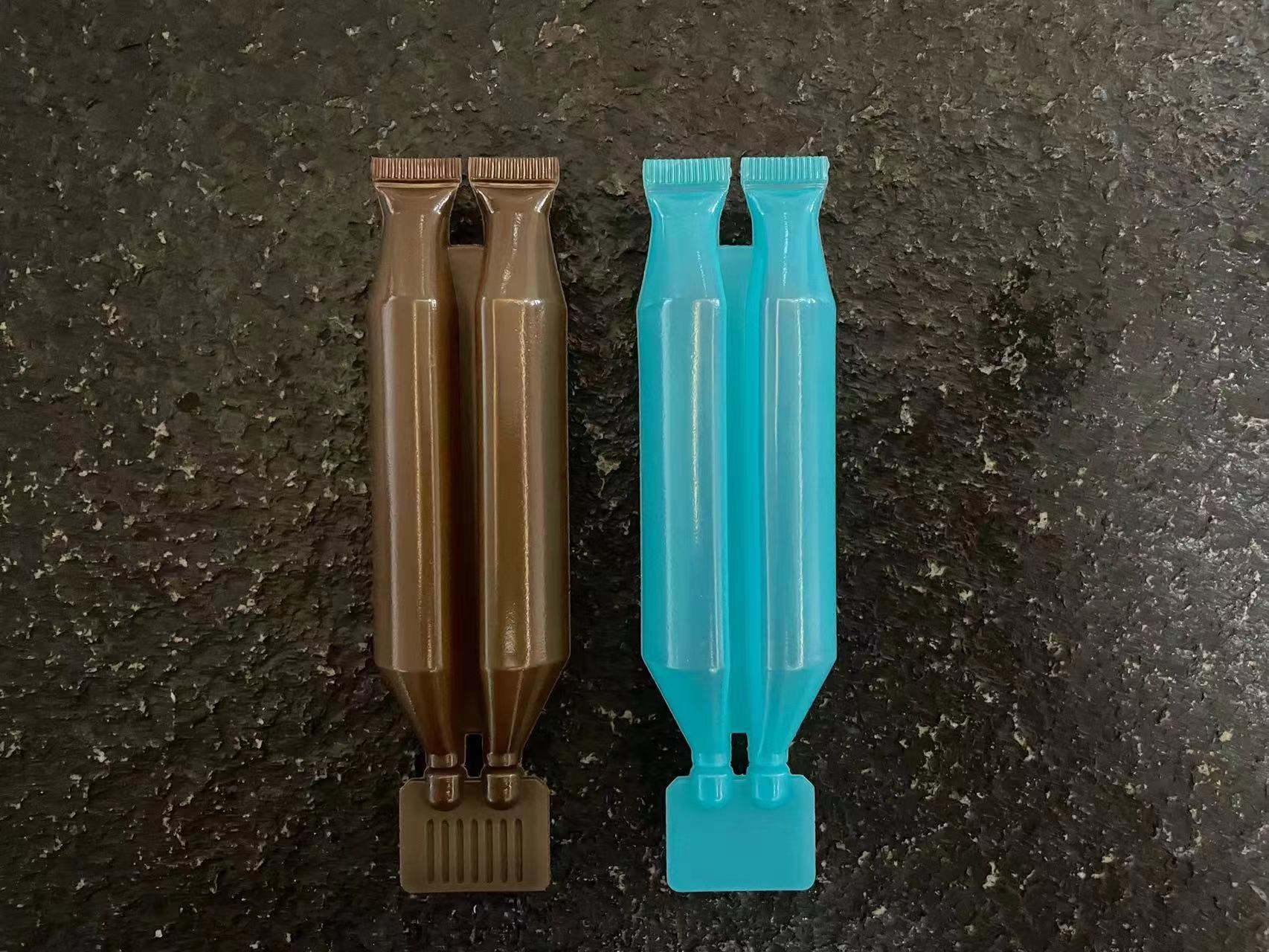

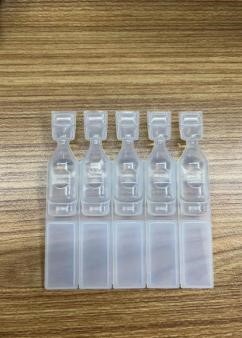

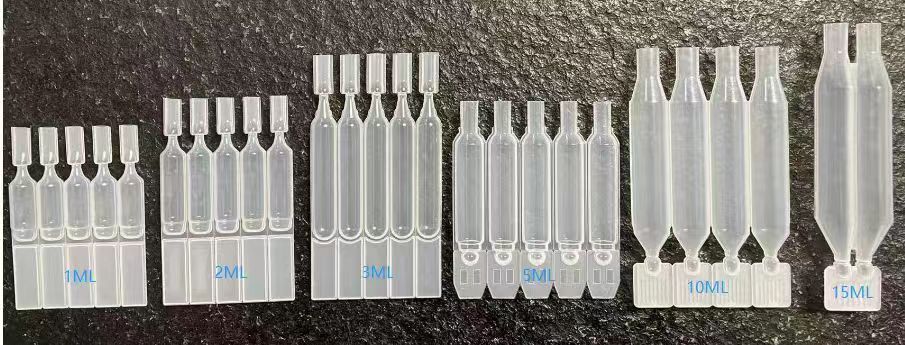

Secondary disposable tube
| GS-205STFS | |||||||||
| Machine Dimensions | L1300 x W1010 x H1550 mm | ||||||||
| Pneumatic Pressure | 0.6Mpa | ||||||||
| Air consumption | 0.35m²/min | ||||||||
| Machine Net Weight | 350KG | ||||||||
| Production Capacity | 26-32 row/min | ||||||||
| Filling machine | Ten-head precision ceramic pump | ||||||||
| Filling Range | 0.3-3ml | ||||||||
| Filling Error | ±0.5% | ||||||||
| Suitable for soft tubes | Secondary disposable tube | ||||||||
| Filling material | Essence | ||||||||
| Body material | SUS 304 | ||||||||
