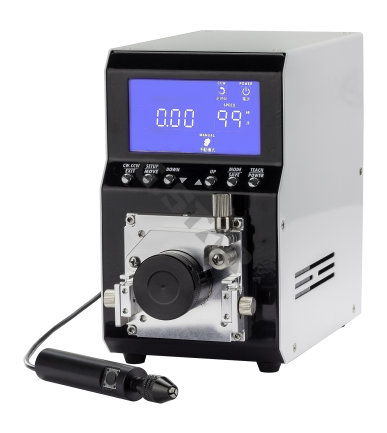

Peristaltic Dispenser
Model :
UNI-D-1000
| Model | UNI-D-1000 | |||
| Power Supply | 120 VDC/1A | |||
| Flow Rate | 1.5kg/cm2 and above (may vary depending on tube diameter) | |||
| Extrusion Pressure | 1.5kg/cm2 and above | |||
| Input Power | 9ml/min(PTEF Tubing) ; 90ml/min(High-flow conveying mechanism) | |||
| Motor Rotation Speed | 00~99 rpm | |||
| Fluid Delivery Direction | CW/CCW Switchable to Forward/Reverse | |||
| Dispensing Setting Range | 0.01~99.99 circles | |||
| Dimensions | W100xL207xH170 mm | |||
| Weight | 2.0 kg | |||
| Communication Interface | RS232 | |||
| Repeatability | ±0.01% | |||
